Time-series deep learning · Reference run

Forecasting smartphone battery degradation with an LSTM

A single-layer LSTM learns one-step-ahead battery percentage from four telemetry channels, then rolls its own predictions forward for a 24-step forecast. Every number on this page comes from the reference notebook run in the repository.

Samsung SM-A910F · single device
385,429 sensor readings
Android 8.0.0 · 5,000 mAh Li-ion
TensorFlow / Keras

Sensor readings 385,429 15 raw channels · 4 model features

Held-out test MSE <10⁻⁴ scaled units · chronological 20% test split

Final validation loss 5.55×10⁻⁷ epoch 30 of 30 · last 12 epochs shown

Forecast horizon 24 steps recursive, one step at a time

Training & validation loss

Mean-squared error per epoch, log scale · 30 epochs · batch size 32

Loss collapses by three orders of magnitude within five epochs and the validation curve tracks training closely — no sign of overfitting.

Feature correlations

Pearson r between the four model inputs

CPU usage and voltage move together (r = 0.79); battery percentage correlates only moderately with any single channel.

24-step forecast

Last 50 readings and the recursive forecast beyond them

The model expects the discharge to level off just above 31.6%. Future exogenous channels are held at zero — see the notes below.

Pipeline

From raw Kaggle export to forecast — each stage is an importable module in src/battery_forecast.

Ingest

385,429 rows read with descriptive names for 15 raw columns; the unusable header row is skipped.

Clean

Numeric coercion, boolean mapping, timezone-aware timestamps, fully-empty columns dropped.

Scale & window

Four channels min-max scaled to [0, 1]; sliding 24-step windows labelled with the next battery reading.

Train

LSTM(50) → Dense(1), Adam on MSE, 30 epochs; chronological 80/20 split with 10% validation.

Evaluate

Held-out tail of the series; test MSE below 10⁻⁴ in scaled units.

Forecast

24 recursive steps: each prediction is rolled back into the input window.

Architecture

Input	24 timesteps × 4 features
Recurrent layer	LSTM · 50 units · ReLU
Head	Dense(1) — next battery %
Parameters	≈ 11K trainable

Run configuration

Optimizer / loss	Adam / MSE
Epochs · batch	30 · 32
Split	80/20 chronological · 10% val
Features	battery %, apps, CPU, voltage

From the notebook

Figures exported directly from the executed notebook (scripts/export_notebook_assets.py).

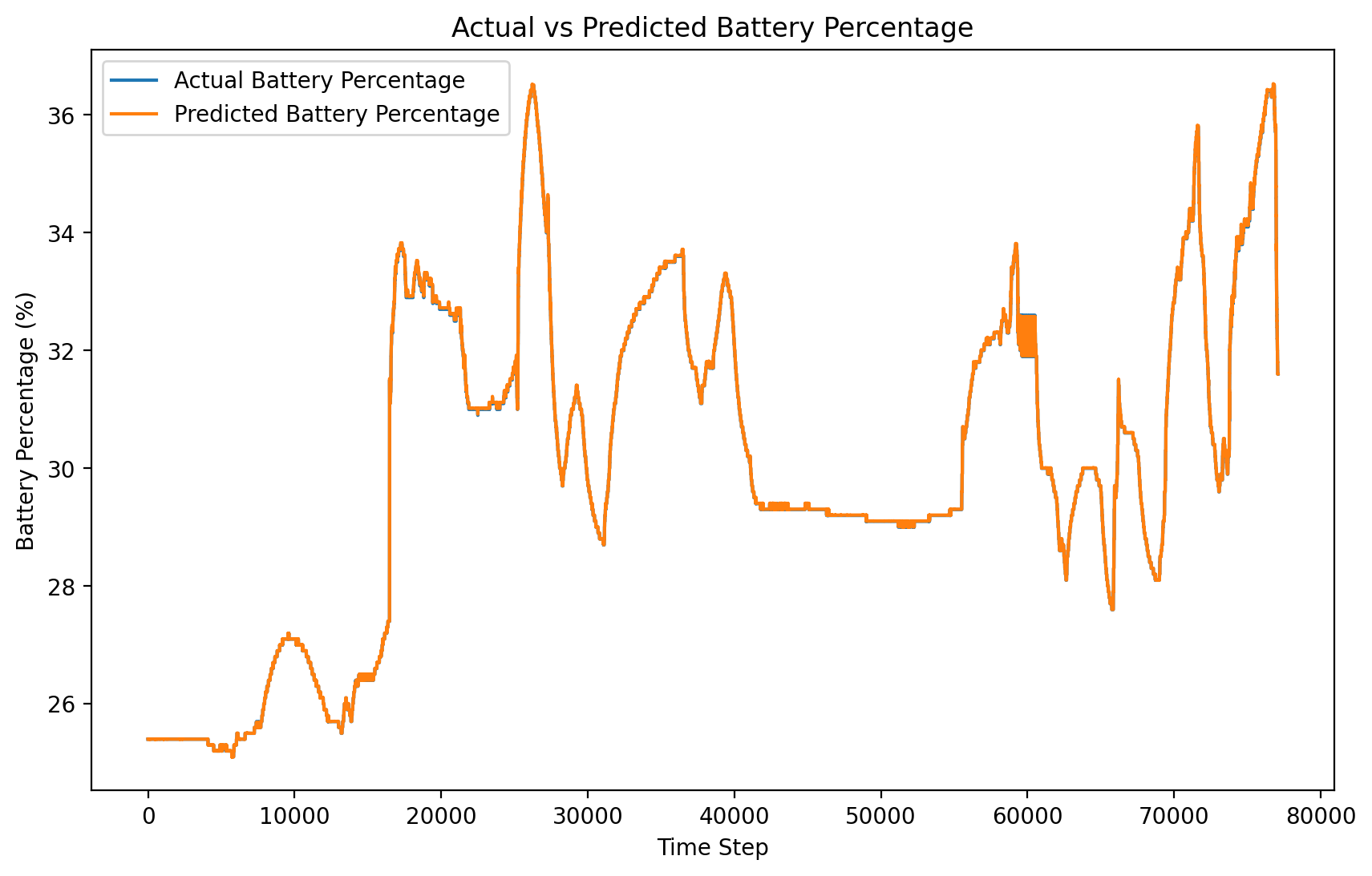

Line chart comparing actual and predicted battery percentage across roughly 77,000 held-out timesteps; the two lines are nearly indistinguishable. — **Actual vs. predicted — held-out test set** One-step-ahead predictions across ≈77K timesteps sit on top of the actual series.

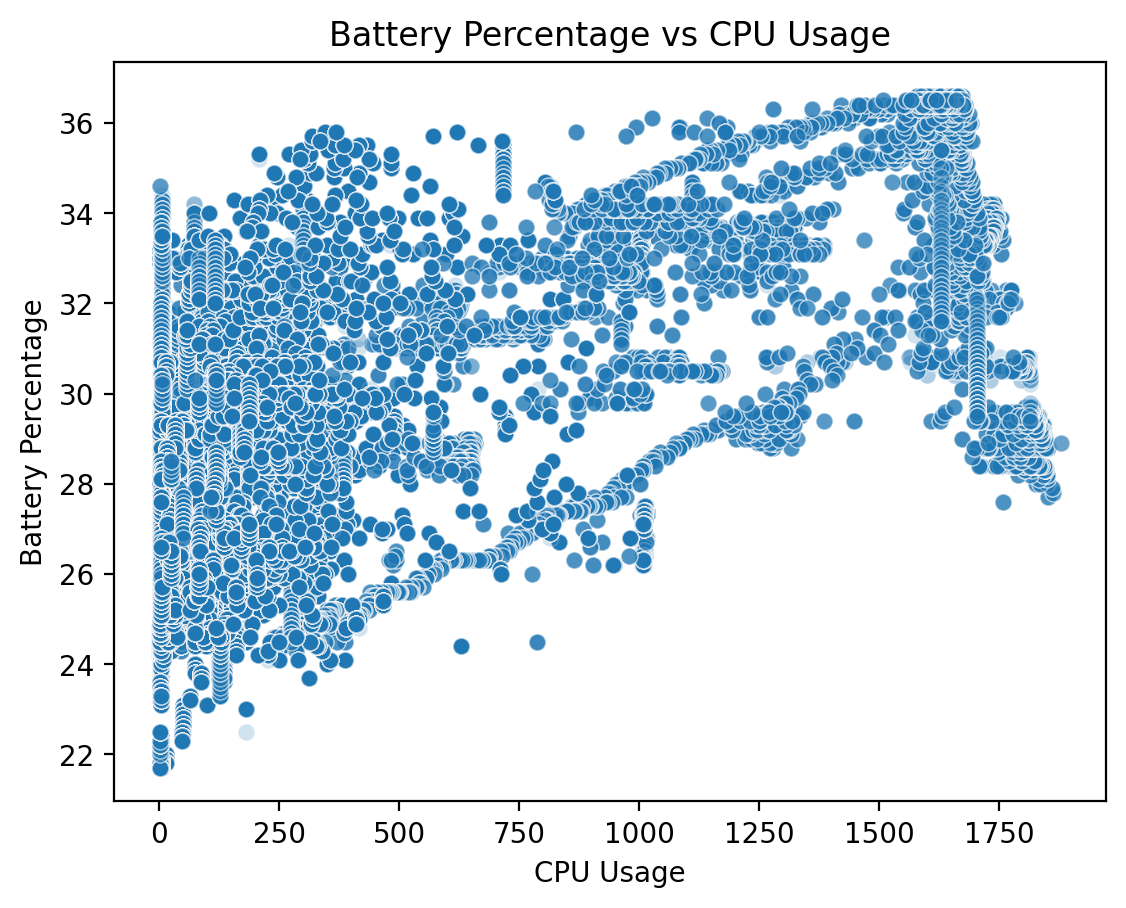

Scatter plot of battery percentage against CPU usage. — **Battery % vs. CPU usage** Discharge behaviour across CPU load during exploration.

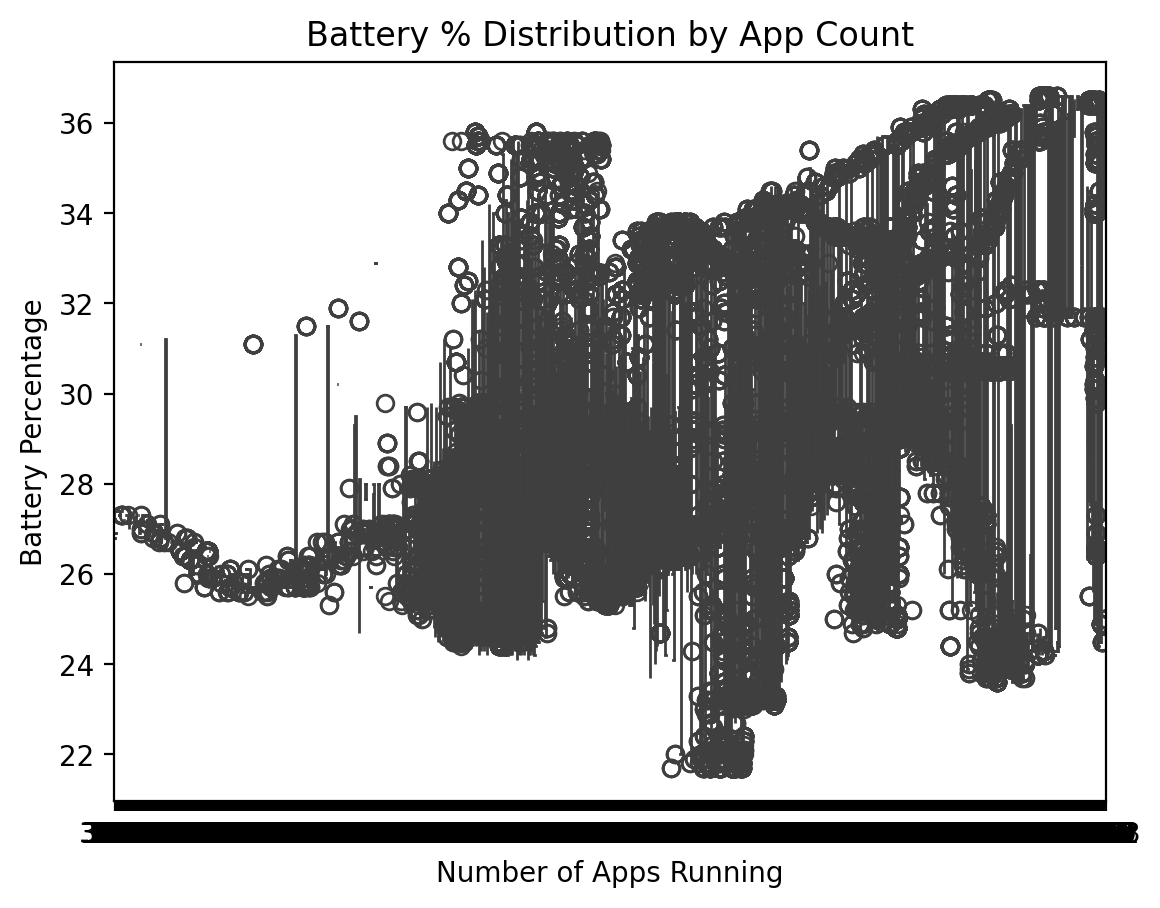

Box plot of battery percentage grouped by the number of running apps. — **Battery % by running apps** Distribution of charge level as the app count varies.

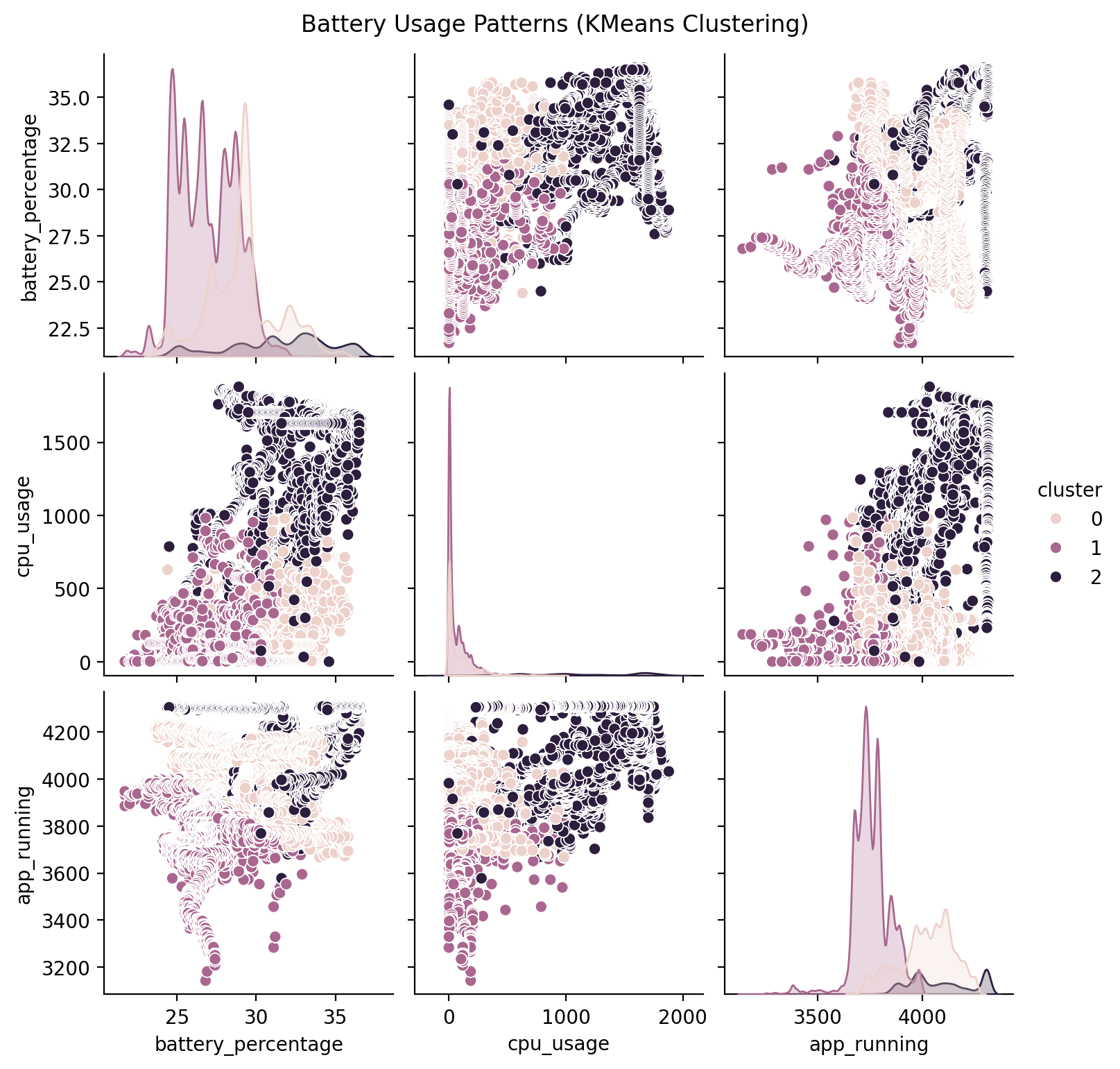

Pair plot of battery percentage, CPU usage and app count coloured by three KMeans clusters. — **Usage patterns (KMeans, k = 3)** Clustering the scaled features reveals three broad usage regimes.

Reading the results honestly

Near-zero MSE ≠ oracle

Battery percentage moves slowly relative to the sampling rate, so closely tracking the previous value already yields a tiny one-step error. Benchmark against a persistence baseline before claiming skill.

One device only

All 385K readings come from a single Samsung SM-A910F. Nothing here is evidence of generalization to other hardware or usage patterns.

Frozen future inputs

During recursive forecasting the non-target channels are held at zero, which limits long-horizon realism. Forecasting exogenous inputs jointly is the natural next step.
